Review Sapphire Vapor-X HD 6770 1GB GDDR5

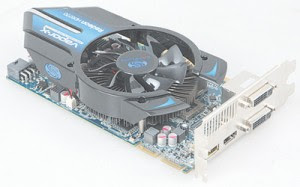

Graphics card Sapphire Vapor-X HD 6770 1GB GDDR5 has a pretty interesting design. Cooling is used fairly cool design with tapered at the ends. The fan used is also good and do not produce noise, even in full load condition. Vapor-X cooling system is quite thick so it took a double slot.

Using AMD's RV850 graphics core or better known as Juniper, he has speed as a reference. Similarly, the output. He also supports AMD Eyefinity and AMD HD3D technology AMD-style 3D view.

Sapphire mainstream graphics card performance is quite good for its class. A variety of today's 3D games can be played smoothly, the origin of detail and resolution is customizable. Cooling Vapor-Xnya also work well: graphics card capable of maintaining the temperature remains below 70 ° C at full load.

specification

AMD GPU manufacturers
GPU RV850 (Juniper)
Accelerators Radeon HD 6770
Local Memory 1GB GDDR5
Interface PCI-Express 2.1 x16
Integrated two DVI outputs, HDMI, DisplayPort
Additional Power Supply 1 PCI-Express 6pin
Accelerator Clock 850MHz
Shader Clock 850MHz
Local Memory Clock 2400MHz (4800MHz Effective)
Local Memory Line Width 128bit
Stream Processor 800
DirectX 11
OpenGL 4.1
Website http://www.sapphiretech.com
