Review Yeastar MyPBX GSM

IP-based PABX system on this device can make your corporate telephony systems become larger but still efficient.

If you are an entrepreneur who has a small to medium sized businesses, of course, it's time to think of an adequate system of telephony. You can use a PABX system which is commonly used in various offices.

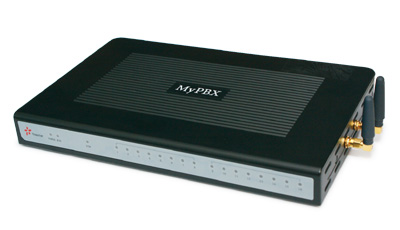

Yeastar MyPBX GSM is one of several variants of the IP PBX is owned by Yeastar. MyPBX GSM has a fairly compact size. This device is able to accommodate as many as 100 users, and capable of handling 22 simultaneous connections.

Devices with 128 MB of RAM has two RJ45 ports that are divided into one LAN and one WAN, and has 16 RJ11 ports for connection to a conventional telephone device.

In terms of physical size, MyPBX GSM is much more compact when compared with conventional devices.

Similar to a conventional PABX system, Yeastar MyPBX GSM also has the ability to be expanded. Yes, Yeastar MyPBX GSM has a modular construction in it. Modular construction in question is, this device has space for additional modules to meet the communication needs. Simply open the four screws that close the GSM MyPBX this, and in it provided ample space for eight additional modules.

Yeastar MyPBX GSM supports several types of modules. Roughly there are four types of modules are supported by this device, the module O2 (FXO), S2 (FXS), SO, (FXS & FXO), and GSM modules. The maximum number of each module that can be plugged into the GSM MyPBX berbedabeda. For example, in MyPBX GSM module can accommodate up to eight O2, but the number of GSM modules which support a maximum of only four pieces only.

To start building the system using IP telephony PBX, of course, you must first prepare the infrastructure, including set extensions that will be used in your system. To make these settings, you can go to control panel GSM MyPBX this by typing its IP address on a web-browser (standard http://192.168.5.150).

The control panel had somewhat complex, but not too confusing. The entire menu is placed on the left side, the menus are also grouped by or features, such as the extension settings, call settings in and out, until the settings menu (as we usually encounter when contacting a call center).

One of the main feature on the GSM MyPBX Yeastar ekstensiekstensi this is a setting on the telephony network that will be used. You can set the number of digits as you wish. The maximum number of extensions that can be made is 100 pieces. After that, you can register a whole new phone that is connected to this network by including extensions, user ID, and password that was registered on the control panel.

Devices supported phone is IP phone, softphone, and smartphones that we use. There are a number of supporting applications, both on the Android operating system, IOS, or Symbian, to make VOIP calls.

In addition, Yeastar MyPBX GSM can also be set up and divert calls based on needs. So for example say you want to make calls to mobile operators, by arranging its routing, this device can make outgoing calls using the mobile operator with a GSM module available.
